Introduction to Java AWT

When I first stepped into Java GUI programming. If you’re reading this, chances are you’re trying to understand what Java AWT is, why it exists, and how you can use it to build simple graphical user interfaces.

Let me make this extremely simple.

Java AWT (Abstract Window Toolkit) is a part of Java’s standard library used to create GUI applications like windows, buttons, text fields, menus, and more.

When I started exploring desktop programming in Java, Java-AWT felt like magic. I was able to create an actual window — like a real “app window” — using just a few lines of code. And trust me, that moment stays with you.

What is Java AWT?

Java-AWT is the foundation of Java’s GUI system.
It provides:

Components (like Button, Label, TextField)
Containers (like Frame, Panel)
Layout Managers (FlowLayout, BorderLayout, GridLayout)
Event Handling (ActionListener, MouseListener, etc.)

If you’re building your first GUI app in Java, Java-AWT is the first place you should start. It helped me understand how graphical components behave, how windows render, and how events are processed.

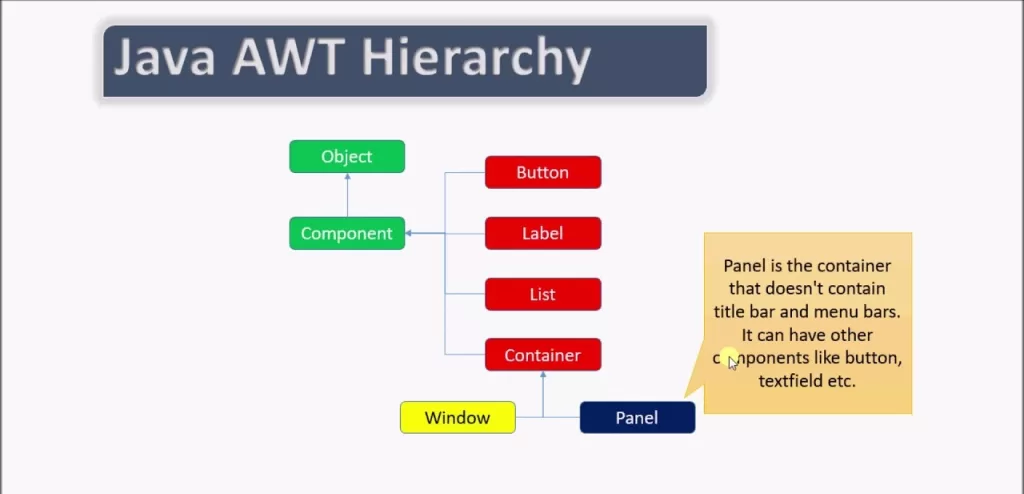

Hierarchy of Java AWT Packages

The core AWT packages are:

java.awt
java.awt.event
java.awt.image
java.awt.color
java.awt.font
java.awt.geom
java.awt.datatransfer

When I first looked at this list, it overwhelmed me.
But believe me — you don’t need all of them at once.
Just java.awt and java.awt.event are enough to get started.

Java AWT Components (The Visible UI Elements)

Components are the basic building blocks.
Anything you can see on the screen is a component.

Some commonly used Java-AWT components:

✔ Label

Used to display text.

✔ Button

Creates a clickable button.

✔ TextField

Used to take user input.

✔ TextArea

For multi-line text input.

✔ Checkbox

Represents a selection option.

✔ List

Shows a list of options.

✔ Choice

Dropdown list (like a combo box).

✔ Canvas

Used for drawing graphics.

When I built my first calculator app using java-awt, these components felt like LEGO blocks — simple yet powerful.

Java AWT Containers (The Holders of Components)

Components need containers.
I like to think of containers as “buckets” that hold interface elements.

The main containers in java awt are:

✔ Frame

A normal window. Like a desktop app window.

✔ Panel

A container inside a frame.

✔ Dialog

Popup windows.

✔ Window

Superclass of Frame and Dialog.

When I created my first AWT window, this was the code:

import java.awt.*;

public class MyAWTWindow {
    public static void main(String[] args) {
        Frame f = new Frame("My Java AWT Frame");
        f.setSize(300, 200);
        f.setVisible(true);
    }
}

java

It was the moment where I felt, “Okay, I’m actually building GUI now!”

Java AWT Layout Managers (To Organize Components)

Java AWT gives you:

1. FlowLayout

Left-to-right arrangement.

2. BorderLayout

North, South, East, West, Center positions.

3. GridLayout

Grid of rows and columns.

4. GridBagLayout

Flexible but complex layout.

5. CardLayout

Stack of components like cards.

If you want predictable layouts, stick to FlowLayout or BorderLayout at first — that’s what I did.

Java AWT Event Handling (The Heart of GUI Programming)

A GUI is useless without interaction.

If someone clicks a button, Java needs to know.
If someone types something, Java should respond.

This is called Event Handling, and AWT uses the Delegation Event Model.

Common event listeners in java awt:

ActionListener
MouseListener
MouseMotionListener
WindowListener
KeyListener

Here’s the simplest example of ActionListener:

Button b = new Button("Click Me");
b.addActionListener(e -> {
    System.out.println("Button clicked!");
});

java

Differences Between AWT and Swing (Beginner Must-Know)

I used to get confused between AWT and Swing, so here’s the simple version:

Feature	AWT	Swing
Type	Heavyweight	Lightweight
Components	OS-dependent	Java-rendered
Look & feel	Native	Customizable
Speed	Faster for small GUIs	More features

If you’re starting from scratch, I recommend beginning with java awt, then moving to Swing or JavaFX.

Advantages of Java AWT

Easy to learn
Perfect for beginners
Great for understanding GUI basics
Uses native OS components
Faster rendering for basic apps

Limitations of Java AWT

Limited components
Not ideal for large applications
OS-dependent look & feel
Swing provides more features

Despite these limitations, java awt still plays a major role in learning GUI programming.

Simple Java AWT Program (Like a GFG Example)

import java.awt.*;

public class AWTExample {
    public AWTExample() {
        Frame f = new Frame("AWT Example");
        Label l = new Label("Welcome to Java AWT");
        f.add(l);
        f.setSize(300, 200);
        f.setVisible(true);
    }

    public static void main(String[] args) {
        new AWTExample();
    }
}

java

Where is Java AWT Used Today?

Yes, AWT is older.
But it is still used in:

Educational projects
University lab programs
Internal company tools
Legacy applications
Graphics and drawing tools

Even modern Java GUI ideas come from AWT concepts.

Final Thoughts

Learning java awt was one of my favourite phases of Java programming. It’s simple, predictable, and teaches you the real fundamentals of GUI development. If you want to build big applications later in Swing or JavaFX, start here — exactly the way I did.
