Introduction:

    • Ardunio is an open source platform it is also used for developing electronics projects.
    • Arudnio consists of physical programmable circuit board and Integrated Development Environment that runs on your computer, used to write and upload computer code to the physical board.
     arduino board

    arduino board

    • The ardunio IDE uses a simplified version of c++ beacuse of easy to learn .
    • Arduino provides a standard form factor its break out the functions of the micro-controller into a more accessible package.

    What is arduino?

      • Arduino is an open source platform used for developing electronics projects.
      • It able to read inputs - light on a sensor, a finger on a button, or a Twitter message - and turn it into an output - activating a motor, turning on an LED, publishing something online.
      • Arduino design for artists, designers, hobbyists and anyone interested in creating interactive objects or environments.
       arduino cmd

      arduino cmd

      What Does it Do?

        • Arduino it able to read buttons, LEDs, motors, speakers, GPS units, cameras, the internet, and even your smart-phone or your TV.
        • It is design for artists, designers, hobbyists, hackers, newbies, and anyone interested in creating interactive objects or environments.
         arduino progress bar

        arduino progress bar

        What's on the board?

          POWER

          • Every ardunio board need power connection.
          • Here we use USB coming from computer or wall suplay.

          PINS:

          Here different types of pins are there this are:

          • 5V, 3.3V, GND, Analog, Digital, PWM, AREF.

          5V:

          • 5v pin means it supplying power 5volts.

          3.3V:

          • 3.3v pin means it supplying power 3.3volts.

          GND:

          • GND means ground.
          • GND pin used for ground circuit.

          Analog:

          • This pin use for reading signal from analog sensor and it will convert into digital value that we can read.

          Digital:

            • This pins are used for digital input and digital output.

            PWM:

            • This pins are act as normal digital pins but it also used for called Pulse-Width Modulation .

            AREF:

            • Most of the time you can leave this pin alone.
            • It is used for set an external reference voltage as the upper limit for the analog input pins.

            Reset Button:

            • Reset Button used for reset any code load on the ardunio.
            • This can very useful it dosen’t repeat but you want test it multiple times.

            Power LED Indicator:

            • When you plug ardunio into power source this LED should power up.
            • If light dosen’t turn on there is something wrong time to recheck your circuit.

            TX RX LEDs:

            • TX means transmit RX means receive.
            • These markings appear quite a bit in electronics to indicate the pins responsible for serial communication.
            • When Arduino is receiving or transmitting data These LEDs will give us some nice visual indications.

            Main IC:

            • The main IC on the Arduino is slightly different from board type to board type, but is usually from the ATmega line of IC’s from the ATMEL company.
            • This is important, may you need to know the IC type before loading up a new program from the Arduino software.

            Voltage Regulator

            • It is not actually something you can interact with on the Arduino.
            • It is control the amount of voltage on the Arduino board.

            The Arduino Family:

              • Ardunio design different board each with different capabilities.

              What is Arduino Uno (R3) ?

                • Your first arduino the Uno is great.
                • Whatever you need to get start it got everything.
                • It’s has 14 digital input output pins,6 along inputs,a USB connection and etc.
                • It simply connect with computer using USB.

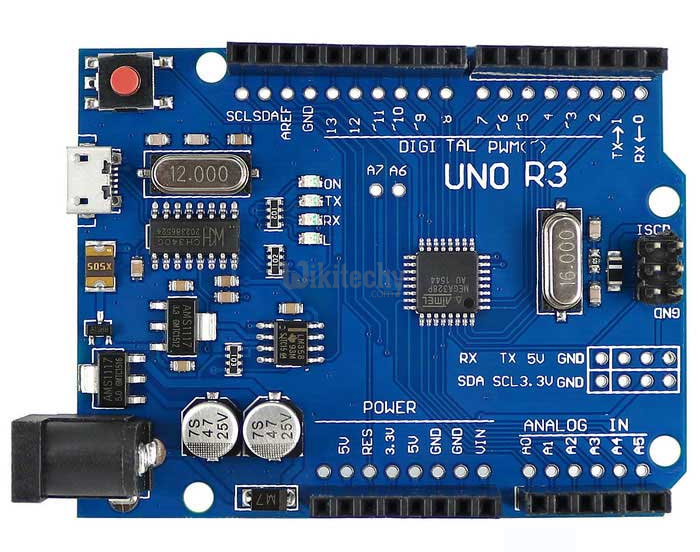

                 Arduino UNO R3

                Arduino UNO R3

                Summary

                  Microcontroller ATmega328P
                  Operating Voltage 5V
                  Input Voltage 7-12V
                  Input Voltage (limit) 6-20V
                  Digital I/O Pins 14 (of which 6 provide PWM output)
                  PWM Digital I/O Pins 6
                  DC Current per I/O Pin 6
                  DC Current per I/O Pin 20 mA20 mA
                  DC Current for 3.3V Pin 50 mA
                  Flash Memory 32 KB (ATmega328P) of which 0.5 KB used by boot loader
                  SRAM 2 KB (ATmega328P)
                  EEPROM 1 KB (ATmega328P)
                  Clock Speed 16 MHz
                  EEPROM 1 KB (ATmega328P)
                  LED_BUILTIN 13
                  Length 68.6 mm
                  Width 53.4 mm
                  Weight 25 g

                  OSH: Schematics:

                    • Arduino Uno is open source you can build your own board.

                    Overview:

                    • UNO is microcontrolled board based on ATmega328.
                    • arduino Uno digital input and output pins, 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button.
                    • It is simply connect by the USB.
                    • arduino Uno that it does not use the FTDI USB-to-serial driver chip.

                    Power:

                      • Every arduino uno board need power connection.
                      • Here we using USB or external power supply.
                      • Power source will be selected automatically.
                      • External power come from wall-wart or battery.
                      • The adapter can be connected by plugging a 2.1mm center-positive plug into the board's power jack.

                      5v:

                      • 5v pin means it supplying power 5volts.

                        3.3V:

                          • 3.3v pin means it supplying power 3.3volts.

                          GND:

                            • GND means ground.
                            • GND pin used for ground circuit.

                            VIN:

                              • When it is using external power source the input voltage to the arduino board.

                              Memory:

                              • The ATmega328 has 32 KB.
                              • It also has 2 KB of SRAM and 1 KB of EEPROM.

                                Input and Output:

                                • Uno can be used as an input or output for each of 14 bins.
                                • It operate on 5volts.
                                • Each pin can receive maximum 40mA.

                                Serial:

                                  • TX means transmit RX means receive.
                                  • This pins are connected to the corresponding pins of the ATmega8U2 USB-to-TTL Serial chip.

                                  External Interrupts:

                                    • This pins are interrpts on low value, a rising or falling edge, or a change in value.

                                    LED

                                      • When pin is high value LED is on and when pin is low LED is off.

                                      TWI:

                                        • Using the wire library for support TWI communication.

                                        AREF:

                                          • Reference voltage for the analog inputs.

                                          Reset:

                                            • Line is bring into LOW to reset the microcontroller.

                                            Communication:

                                              • The uno communication with computer, another Arduino, or other microcontrollers.
                                              • The ATmega328 communaction with TX and RX.
                                              • ATmega16U2 communication with USB and COM drivers.
                                              • The RX and TX LEDs on the board will flash when data is being transmitted via the USB to the serial chip and USB connection to the computer.

                                              Programming

                                                • The uno can program with Arduino software.
                                                • Select "Arduino Uno from the Tools > Board menu.
                                                • The ATmega328 on the Arduino Uno comes preburned with a bootloader that allows you to upload new code to it without the use of an external hardware programmer.
                                                • It communicate with STK500 protocol.
                                                • The ATmega16U2 firmware source code avilable.

                                                Rev1 boards:

                                                  • solder jumper connected to the back of the board and resetting the 8U2.

                                                  Rev2 or later boards:

                                                    • This is pulling the the 8U2/16U2 HWB line to ground, making it easier to put into DFU mode.

                                                    USB Overcurrent Protection:

                                                      • Uno has a resettable polyfuse that protects your computer's USB ports from shorts and overcurrent.
                                                      • computers can provide their own internal protection, the fuse provides an extra layer of protection.
                                                      • 500mA will applied on USB the fuse automatically break the connection.

                                                      Physical Characteristics:

                                                        • The maximum length and width of UNO respectively 2.7 and 2.1 inches.
                                                        • Note the distance between digital pins 7 and 8 is 160 mil , not an even multiple of the 100 mil spacing of the other pins.

                                                        What is LilyPad Arduino ?

                                                          • Main board of ardunio is lilypad arduino.
                                                          • Lilypad is wearable e-textile technology.
                                                          • Each lilypad was designed with large connecting pad and flat back to allow them to be sew into clothing with conductive thread.
                                                           lilypad arduino

                                                          lilypad arduino

                                                          RedBoard

                                                            • We use many android SprakFUN and we are looking for the simplest most stable one.
                                                            • No one board has everything we want and every broad has little different so we make our own version with our all features.
                                                            • It is using USB mini-B cable.
                                                            • It will work on windows 8 without change security system.
                                                            • RedBoard can power over USB or through barrel jack.
                                                             red board

                                                            red board

                                                            What is Arduino Mega ?

                                                            • The Arduino Mega 2560 is a microcontroller board based on the ATmega2560.
                                                            • It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.
                                                            • It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter.
                                                                 arduino mega

                                                                arduino mega

                                                                Arduino leonardo:

                                                                  • It is first development to use one microcontroller with built in USB,
                                                                  • This means it is simple and cheaper.
                                                                  • This board use USB correctly.
                                                                   arduino leonardo

                                                                  arduino leonardo
