Introduction: Logic Gates The Digital Decision-Makers
Imagine you are going to an exclusive VIP event. The security team at the entrance checks guests against a set of rules. If they meet the criteria—on the guest list and dressed appropriately—they’re allowed in. Otherwise, they stay outside. This is how logic gates work in the world of computers—simple decision-makers that determine outcomes based on inputs. They’re the foundation of digital systems, helping everything from your phone to banking security and smart home devices make decisions.
Understanding the Basics of Logic Gates
Let’s break them down with some relatable examples, keeping things light and easy to follow. In digital logic, 1 is often represented as ‘true,’ ‘on,’ or ‘yes,’ while 0 can be seen as ‘false,’ ‘off,’ or ‘no.’ We’ll even throw in some truth tables—don’t worry, they’re just tiny charts that help clarify things!
Before diving into each logic gate, let’s clarify some key terms:
- Binary System: Computers use only two values, 1 and 0, to represent all information.
- Logic Gates: These are simple decision-makers that process inputs (1s and 0s) to determine an output.
- Truth Table: A small chart that shows how a logic gate processes different inputs and what output it produces.
- 1 and 0 Meanings: In digital logic:
- 1 can also be called true, on, or yes.
- 0 can also be called false, off, or no.

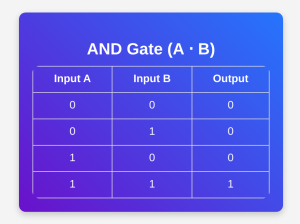

AND Gate: Both Conditions Must Be True
Logical Formula: A ⋅ B
Think of online banking. To transfer a large amount of money, you often need both your password and a one-time verification code. If either one is missing, the transfer doesn’t go through. That’s the AND gate—it only produces a “yes” (1) when both inputs are “yes” (1); otherwise, it gives a “no” (0).
OR Gate: One Condition is Enough
Logical Formula: A + B
Imagine unlocking your car. You can do it either with the physical key or the remote key fob. If either one is used, the car unlocks. That’s the OR gate—as long as at least one input is “yes” (1), the output is also “yes” (1).
XOR Gate: Only One Can Be True
Logical Formula: A ⊕ B = (A ⋅ ¬B) + (¬A ⋅ B)
Think of a hotel room keycard system. When a new keycard is issued, it invalidates the old one. If you try to use both, only the latest one will work. That’s the XOR (exclusive OR) gate—the output is “yes” (1) only if exactly one input is “yes” (1).

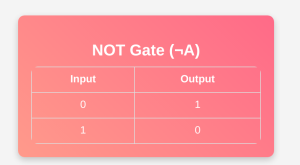

NOT Gate: The Contrarian
Logical Formula: ¬A
The NOT gate is like your office coffee machine that only starts brewing when it isn’t empty. If the machine is full (1), it won’t brew (0). If it’s empty (0), it starts making coffee (1). It simply flips the input.
NAND and NOR: The Opposites of AND and OR
NAND Gate: The Security Alarm
Logical Formula: ¬(A ⋅ B)
Think of a two-factor authentication system for logging into an account. If both the password and the one-time code are entered correctly, access is denied until additional verification is done. This is the NAND gate, which is the opposite of AND—it only gives “no” (0) when both inputs are “yes” (1).

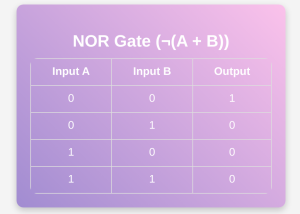

NOR Gate: The Do-Not-Disturb Mode
Logical Formula: ¬(A + B)
Imagine your phone’s “Do Not Disturb” setting. It only stays silent if neither a call nor a notification is received. The NOR gate ensures that the output is “yes” (1) only when both inputs are “no” (0).
d

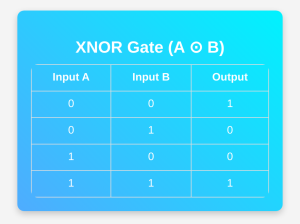

XNOR Gate: The Agreement Maker
Logical Formula: A ⊙ B = (A ⋅ B) + (¬A ⋅ ¬B)
A password manager is a great example of an XNOR gate. If the entered password matches the stored password, access is granted. If they don’t match, access is denied. The output is “yes” (1) only when both inputs are the same.
Why Learn Logic Gates?
Logic gates are the building blocks of digital tech, shaping how devices “think.” Here’s why they matter:
🔹Understand Technology – Tech isn’t magic; it’s just a series of simple decisions. Knowing logic gates helps you troubleshoot devices and become a smarter user.
🔹Boost Career Skills – From programming to cybersecurity, logic gates are fundamental. Mastering them gives you an edge in IT fields.
🔹 Sharpen Logical Thinking – They train your brain to break complex problems into clear yes/no decisions—great for coding, planning, and critical thinking.
They’re everywhere! AI algorithms use logic gates to process data, cybersecurity systems rely on them for encryption and authentication, and networking uses them to manage traffic and ensure smooth communication. Self-driving cars? They process thousands of logic gate operations per second to make split-second decisions. Even cloud computing and blockchain are built on circuits designed with these tiny decision-makers.
From unlocking your phone to securing financial transactions, logic gates power the backbone of modern technology. Master them, and you’ll unlock the secrets behind AI, cybersecurity, and the entire digital world!
Conclusion: Logic Gates The Brains Behind the Tech
Logic gates are the unseen architects behind every smart device, computer, and security system. From unlocking your phone to verifying payments and automating your home, these tiny decision-makers keep technology running seamlessly.
Now that you understand their power, start spotting them in action! Whether you’re using a bank app, adjusting a thermostat, or enabling “Do Not Disturb,” Logic gates are the silent workers behind every smart gadget, computer, and security system. Now that you know how they work, try spotting them in action! These tiny bouncers of the digital world are working tirelessly to ensure everything follows the rules.
