Robotic Motor Controller - Motor Control Module



Motor Control Module

  • It may be defined as an area of natural science exploring how the central nervous system (CNS) produces purposeful, coordinated movements in its interaction with the rest of the body and with the environment.
  • Motor control power is 12V.
  • Pin 8 VS is connected to the 12V DC for motor.
  • Pin 16 VSS is connected to the 5V DC for Internal Voltage.
  • There are 4 input pins and 4 output pins.
  • Pin 2 IN1 is connected to the Arduino pin 5 as PO5/T1.
  • Pin 7 IN2 is connected to the Arduino pin 4 as PO4/T0/XCK.
  • Pin 3 as OUT1 is connected to the Motor.
  • Pin 6 as OUT2 is also connected to the Motor.
  • Motor control is a dynamic. It is two way switch for on/off button.
  • Motor controlĀ is a relatively young field of research.
 Motor control Module Circuit

Motor control Module Circuit

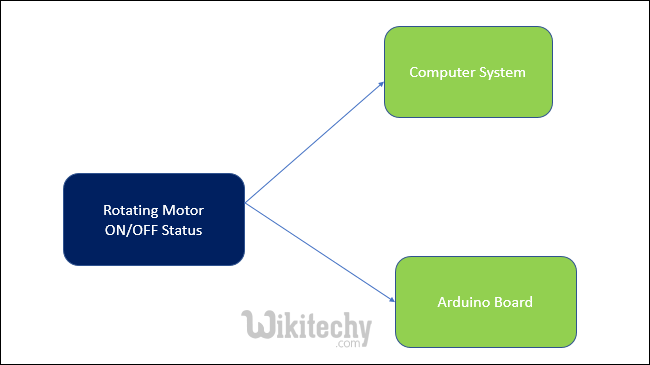

Module Diagram :

 Motor control Module

Motor control Module
