What is Maven Plugins ?

  • Maven is actually a plugin execution framework where every task is actually done by plugins.

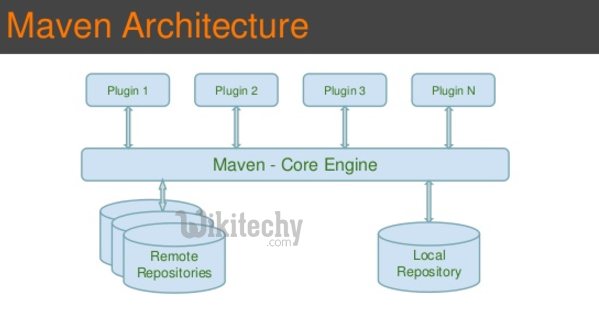

  • learn maven tutorial - apache maven - maven plugin based architecture- Apache Maven example programs

    learn maven tutorial - apache maven maven plugin based architecture - Apache Maven example programs

  • Maven Plugins are generally used to :
    • create jar file
    • create war file
    • compile code files
    • unit testing of code
    • create project documentation
    • create project reports
  • A plugin generally provides a set of goals and which can be executed using following syntax:
 Maven Plugin

Learn Maven Tutorial - Maven Plugin - Maven Example

mvn [plugin-name]:[goal-name]
  • For example, a Java project can be compiled with the maven-compiler-plugin's compile-goal by running following command
mvn [plugin-name]:[goal-name]

Plugin Types

  • Maven provided following two types of Plugins:
Type Description
Build plugins They execute during the build and should be configured in the <build/> element of pom.xml
Reporting plugins They execute during the site generation and they should be configured in the <reporting/> element of the pom.xml
  • Following is the list of few common plugins:
Plugin Description
clean Clean up target after the build. Deletes the target directory.
compiler Compiles Java source files.
surefire Run the JUnit unit tests. Creates test reports.
jar Builds a JAR file from the current project.
war Builds a WAR file from the current project.
javadoc Generates Javadoc for the project.
antrun Runs a set of ant tasks from any phase mentioned of the build.

Example:

  • We've used maven-antrun-plugin extensively in our examples to print data on console.
  • Then create a pom.xml in C:\MVN\project folder.
maven tutorial tags : apache maven , maven repository , maven central

Sample Code

<project xmlns="http://maven.apache.org/POM/4.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
    http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.companyname.projectgroup</groupId>
<artifactId>project</artifactId>
<version>1.0</version>
<build>
<plugins>
   <plugin>
   <groupId>org.apache.maven.plugins</groupId>
   <artifactId>maven-antrun-plugin</artifactId>
   <version>1.1</version>
   <executions>
      <execution>
         <id>id.clean</id>
         <phase>clean</phase>
         <goals>
            <goal>run</goal>
         </goals>
         <configuration>
            <tasks>
               <echo>clean phase</echo>
            </tasks>
         </configuration>
      </execution>
   </executions>
   </plugin>
</plugins>
</build>
</project>
  • Next, open command console and go to the folder containing pom.xml and execute the following mvn command.
C:\MVN\project>mvn clean
  • Maven will start processing and show clean phase of clean life cycle
maven tutorial tags : apache maven , maven repository , maven central

Output

[INFO] Scanning for projects...
[INFO] ------------------------------------------------------------------
[INFO] Building Unnamed - com.companyname.projectgroup:project:jar:1.0
[INFO]    task-segment: [post-clean]
[INFO] ------------------------------------------------------------------
[INFO] [clean:clean {execution: default-clean}]
[INFO] [antrun:run {execution: id.clean}]
[INFO] Executing tasks
     [echo] clean phase
[INFO] Executed tasks
[INFO] ------------------------------------------------------------------
[INFO] BUILD SUCCESSFUL
[INFO] ------------------------------------------------------------------
[INFO] Total time: < 1 second
[INFO] Finished at: Sat Jul 07 13:38:59 IST 2012
[INFO] Final Memory: 4M/44M
[INFO] ------------------------------------------------------------------

The above example illustrates the following key concepts:

  • Plugins are specified in pom.xml using plugins element.
    • Each plugin can have multiple goals.
    • You can define phase from where plugin should starts its processing using its phase element. We've used clean phase.
    • You can configure tasks to be executed by binding them to goals of plugin.\
    • We've bound echo task with run goal of maven-antrun-plugin.
    • That's it, Maven will handle the rest. It will download the plugin if not available in local repository and starts its processing.
