What is POM in Maven ?

  • POM stands for Project Object Model.
  • It is fundamental Unit of Work in Maven.
  • POM is an XML file.
  • It always resides in the base directory of the project as pom.xml.
  • The POM contains information about the project and various configuration detail used by Maven to build the project(s).
  • POM also contains the goals and plugins.
  • While executing a task or goal, Maven looks for the POM in the current directory.
  • It reads the POM, gets the needed configuration information, then executes the goal.
  • Some of the configuration that can be specified in the POM are following:
    • project dependencies
    • plugins
    • goals
    • build profiles
    • project version
    • developers
    • mailing list

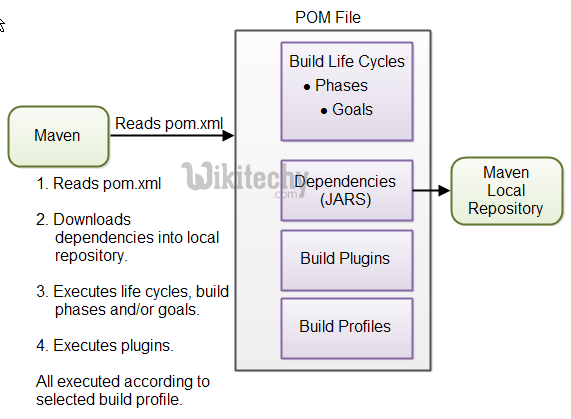

    learn maven tutorial - apache maven - maven architecture - pom file - Apache Maven example programs

    learn maven tutorial - apache maven - maven architecture - pom file - Apache Maven example programs

  • Before creating a POM, we should first decide the project group (groupId), its name(artifactId) and its version as these attributes help in uniquely identifying the project in repository.
 Maven POM

Learn Maven Tutorial - Maven POM - Maven Example

Sample Code:

<project xmlns="http://maven.apache.org/POM/4.0.0"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
   http://maven.apache.org/xsd/maven-4.0.0.xsd">
   <modelVersion>4.0.0</modelVersion>

   <groupId>com.companyname.project-group</groupId>
   <artifactId>project</artifactId>
   <version>1.0</version>

</project>
  • It should be noted that there should be a single POM file for each project.
  • All POM files require the project element and three mandatory fields: groupId, artifactId,version.
  • Projects notation in repository is groupId:artifactId:version.
  • Root element of POM.xml is project and it has three major sub-nodes :
Node Description
groupId This is an Id of project's group. This is generally unique amongst an organization or a project. For example, a banking group com.company.bank has all bank related projects.
artifactId This is an Id of the project.This is generally name of the project. For example, consumer-banking. Along with the groupId, the artifactId defines the artifact's location within the repository.
version This is the version of the project.Along with the groupId, It is used within an artifact's repository to separate versions from each other. For example:

com.company.bank:consumer-banking:1.0

com.company.bank:consumer-banking:1.1.

 Maven POM

Learn Maven Tutorial - Maven POM - Maven Example

Super POM

  • All POMs inherit from a parent (despite explicitly defined or not).
  • POM is known as the Super POM, and contains values inherited by default.
  • Maven use the effective pom (configuration from super pom plus project configuration) to execute relevant goal.
  • POM helps developer to specify minimum configuration detail in his/her pom.xml.
  • Although configurations can be overridden easily.
  • An easy way to look at the default configurations of the super POM is by running the following command: mvn help:effective-pom
  • Create a pom.xml in any directory on your computer.Use the content of above mentioned example pom.
  • In example below, We've created a pom.xml in C:\MVN\project folder.
  • Now open command console, go the folder containing pom.xml and execute the following mvn command.
C:\MVN\project>mvn help:effective-pom
  • Maven will start processing and display the effective-pom.
[INFO] Scanning for projects...
[INFO] Searching repository for plugin with prefix: 'help'.
[INFO] ------------------------------------------------------------------------
[INFO] Building Unnamed - com.companyname.project-group:project-name:jar:1.0
[INFO]    task-segment: [help:effective-pom] (aggregator-style)
[INFO] ------------------------------------------------------------------------
[INFO] [help:effective-pom {execution: default-cli}]
[INFO]

.....

[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESSFUL
[INFO] ------------------------------------------------------------------------
[INFO] Total time: < 1 second
[INFO] Finished at: Thu Jul 05 11:41:51 IST 2012
[INFO] Final Memory: 6M/15M
[INFO] ------------------------------------------------------------------------
  • Effective POM displayed as result in console, after inheritance, interpolation, and profiles are applied.
maven tutorial tags : apache maven , maven repository , maven central

Sample Code

<!-- ====================================================================== -->
<!--                                                                        -->
<!-- Generated by Maven Help Plugin on 2015-09-26T07:51:19                  -->
<!-- See: http://maven.apache.org/plugins/maven-help-plugin/                -->
<!--                                                                        -->
<!-- ====================================================================== -->

<!-- ====================================================================== -->
<!--                                                                        -->
<!-- Effective POM for project                                              -->
<!-- 'com.companyname.project-group:project:jar:1.0'                        -->
<!--                                                                        -->
<!-- ====================================================================== -->

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/
2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 h
ttp://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.companyname.project-group</groupId>
  <artifactId>project</artifactId>
  <version>1.0</version>
  <repositories>
    <repository>
      <snapshots>
        <enabled>false</enabled>
      </snapshots>
      <id>central</id>
      <name>Central Repository</name>
      <url>https://repo.maven.apache.org/maven2</url>
    </repository>
  </repositories>
  <pluginRepositories>
    <pluginRepository>
      <releases>
        <updatePolicy>never</updatePolicy>
      </releases>
      <snapshots>
        <enabled>false</enabled>
      </snapshots>
      <id>central</id>
      <name>Central Repository</name>
      <url>https://repo.maven.apache.org/maven2</url>
    </pluginRepository>
  </pluginRepositories>
  <build>
    <sourceDirectory>C:\MVN\project\src\main\java</sourceDirectory>
    <scriptSourceDirectory>C:\MVN\project\src\main\scripts</scriptSourceDirector
y>
    <testSourceDirectory>C:\MVN\project\src\test\java</testSourceDirectory>
    <outputDirectory>C:\MVN\project\target\classes</outputDirectory>
    <testOutputDirectory>C:\MVN\project\target\test-classes</testOutputDirectory
>
    <resources>
      <resource>
        <directory>C:\MVN\project\src\main\resources</directory>
      </resource>
    </resources>
    <testResources>
      <testResource>
        <directory>C:\MVN\project\src\test\resources</directory>
      </testResource>
    </testResources>
    <directory>C:\MVN\project\target</directory>
    <finalName>project-1.0</finalName>
    <pluginManagement>
      <plugins>
        <plugin>
          <artifactId>maven-antrun-plugin</artifactId>
          <version>1.3</version>
        </plugin>
        <plugin>
          <artifactId>maven-assembly-plugin</artifactId>
          <version>2.2-beta-5</version>
        </plugin>
        <plugin>
          <artifactId>maven-dependency-plugin</artifactId>
          <version>2.8</version>
        </plugin>
        <plugin>
          <artifactId>maven-release-plugin</artifactId>
          <version>2.3.2</version>
        </plugin>
      </plugins>
    </pluginManagement>
    <plugins>
      <plugin>
        <artifactId>maven-clean-plugin</artifactId>
        <version>2.5</version>
        <executions>
          <execution>
            <id>default-clean</id>
            <phase>clean</phase>
            <goals>
              <goal>clean</goal>
            </goals>
          </execution>
        </executions>
      </plugin>
      <plugin>
        <artifactId>maven-install-plugin</artifactId>
        <version>2.4</version>
        <executions>
          <execution>
            <id>default-install</id>
            <phase>install</phase>
            <goals>
              <goal>install</goal>
            </goals>
          </execution>
        </executions>
      </plugin>
      <plugin>
        <artifactId>maven-resources-plugin</artifactId>
        <version>2.6</version>
        <executions>
          <execution>
            <id>default-resources</id>
            <phase>process-resources</phase>
            <goals>
              <goal>resources</goal>
            </goals>
          </execution>
          <execution>
            <id>default-testResources</id>
            <phase>process-test-resources</phase>
            <goals>
              <goal>testResources</goal>
            </goals>
          </execution>
        </executions>
      </plugin>
      <plugin>
        <artifactId>maven-surefire-plugin</artifactId>
        <version>2.12.4</version>
        <executions>
          <execution>
            <id>default-test</id>
            <phase>test</phase>
            <goals>
              <goal>test</goal>
            </goals>
          </execution>
        </executions>
      </plugin>
      <plugin>
        <artifactId>maven-compiler-plugin</artifactId>
        <version>3.1</version>
        <executions>
          <execution>
            <id>default-testCompile</id>
            <phase>test-compile</phase>
            <goals>
              <goal>testCompile</goal>
            </goals>
          </execution>
          <execution>
            <id>default-compile</id>
            <phase>compile</phase>
            <goals>
              <goal>compile</goal>
            </goals>
          </execution>
        </executions>
      </plugin>
      <plugin>
        <artifactId>maven-jar-plugin</artifactId>
        <version>2.4</version>
        <executions>
          <execution>
            <id>default-jar</id>
            <phase>package</phase>
            <goals>
              <goal>jar</goal>
            </goals>
          </execution>
        </executions>
      </plugin>
      <plugin>
        <artifactId>maven-deploy-plugin</artifactId>
        <version>2.7</version>
        <executions>
          <execution>
            <id>default-deploy</id>
            <phase>deploy</phase>
            <goals>
              <goal>deploy</goal>
            </goals>
          </execution>
        </executions>
      </plugin>
      <plugin>
        <artifactId>maven-site-plugin</artifactId>
        <version>3.3</version>
        <executions>
          <execution>
            <id>default-site</id>
            <phase>site</phase>
            <goals>
              <goal>site</goal>
            </goals>
            <configuration>
              <outputDirectory>C:\MVN\project\target\site</outputDirectory>
              <reportPlugins>
                <reportPlugin>
                  <groupId>org.apache.maven.plugins</groupId>
                  <artifactId>maven-project-info-reports-plugin</artifactId>
                </reportPlugin>
              </reportPlugins>
            </configuration>
          </execution>
          <execution>
            <id>default-deploy</id>
            <phase>site-deploy</phase>
            <goals>
              <goal>deploy</goal>
            </goals>
            <configuration>
              <outputDirectory>C:\MVN\project\target\site</outputDirectory>
              <reportPlugins>
                <reportPlugin>
                  <groupId>org.apache.maven.plugins</groupId>
                  <artifactId>maven-project-info-reports-plugin</artifactId>
                </reportPlugin>
              </reportPlugins>
            </configuration>
          </execution>
        </executions>
        <configuration>
          <outputDirectory>C:\MVN\project\target\site</outputDirectory>
          <reportPlugins>
            <reportPlugin>
              <groupId>org.apache.maven.plugins</groupId>
              <artifactId>maven-project-info-reports-plugin</artifactId>
            </reportPlugin>
          </reportPlugins>
        </configuration>
      </plugin>
    </plugins>
  </build>
  <reporting>
    <outputDirectory>C:\MVN\project\target\site</outputDirectory>
  </reporting>
</project>

POM important attributes :

learn maven tutorial - POM important attributes - maven example programs

learn maven tutorial - POM important attributes - maven example programs

POM Sample attributes :

learn maven tutorial - POM Sample attributes - maven example programs

learn maven tutorial - POM Sample attributes - maven example programs

  • In above pom.xml , the default project source folders structure,output directory, plug-ins required, repositories, reporting directory are seen, which Maven will be using while executing the desired goals.
  • Maven pom.xml is also not required to be written manually.
  • Maven provides numerous archetype plugins to create projects which in order create the project structure and pom.xml
