  • The miterLimit property sets the maximum miter length.
  • The miter length is the distance between the inner and the outer corner where two lines meet.
  • linewidth property in HTML5 canvas Code Explanation
  • The miter length become bigger as the angle of the corner makes smaller.
  • If the miter length go beyond the miterLimit value, the corner will be shown as lineJoin type "bevel" (Fig 3) as shown as above.

Syntax for miterLimit property in HTML5 Canvas:

context.miterLimit=number;

Property Values of miterLimit property in HTML5 Canvas:

Value Description
number Defines the maximum miter length.

Sample Coding for miterLimit property in HTML5 Canvas:

Tryit<!DOCTYPE html>
<html>
    <head>
        <title>Wikitechy HTML Canvas miterLimit Property </title>
    </head>
    <body>
        <h1>Wikitechy HTML Canvas miterLimit Property </h1>
        <canvas id="wikitechyCanvas" width="200" height="150"
                style="border:1px solid blue;">
        </canvas>
        <script>
            var ml = document.getElementById("wikitechyCanvas");
            var mlx = ml.getContext("2d");
            mlx.lineWidth = 10;
            mlx.lineJoin = "miter";
            mlx.miterLimit = 7;
            mlx.moveTo(30, 10);
            mlx.lineTo(150, 75);
            mlx.lineTo(15, 100);
            mlx.stroke();
        </script>
    </body>
</html>

Code Explanation for miterLimit property in HTML5 Canvas:

miterlimit property in HTML5 canvas Code Explanation

  1. “wikitechyCanvas” is used to declare the id value of the canvas tag.
  2. The getElementById(); method is used to get the canvas element with the specific id (“wikitechyCanvas”).
  3. ml.getContext(“2d”)a method is returns a two-dimensional drawing context on the canvas.
  4. mlx.lineWidth=10 is used to draw a line with a width of 10 pixel.
  5. mlx.lineJoin=miter property is used to set the sharp corner, when two lines meet.
  6. mlx.miterLimit=7 is used to set the maximum miter length
  7. The moveTo() method is used to set the starting point at (30,10)in x ,y axis.
  8. the lineTo() method is used to set the ending point at(150,75) in x, y direction.
  9. The lineTo() method is used to set the ending point to starting point at (15,100) in x, y direction.
  10. The stroke() method is used to display the graphics.

Sample Output for miterLimit property in HTML5 Canvas:

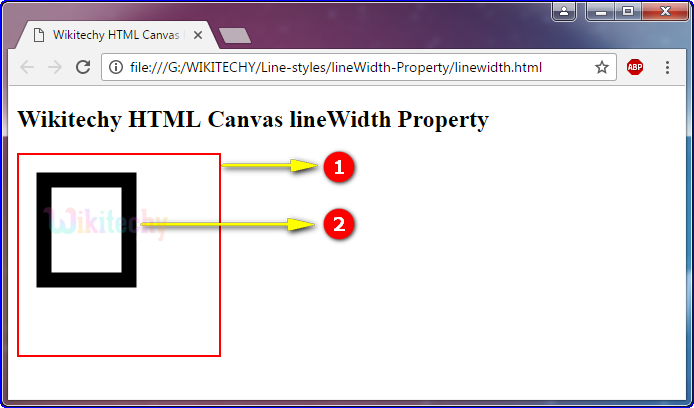

miterlimit property in HTML5 canvas Output

  1. The canvas rectangle with red color border.
  2. Draw a rectangle with a line width of 15 pixels.

Browser Support for miterLimit property in HTML5 Canvas:

Yes 9.0 Yes Yes Yes

Tips and Notes

  • The miterLimit property works only if the lineJoin property is "miter"
