Android tutorial - Password Field Android | Android Password - android app development - android studio - android development tutorial



 password field android
android development tutorial

password field

  • The JPasswordField class, a subclass of JTextField , provides specialized text fields for password entry.
  • For security reasons, a password field does not show the characters that the user types.
  • Instead, the field displays a character different from the one typed, such as an asterisk '*'. ... The password is "bugaboo".
 password field in android
  • In Android, you can use “android.widget.EditText“, with inputType="textPassword" to render a password component.
  • In this tutorial, we show you how to use XML to create a password field, label field and a normal button. When you click on the button, the password value will be displayed as a floating message (toast message).

1. Custom String

  • Open “res/values/strings.xml” file, add some custom string for Demo - android emulator - android tutorialnstration.

File : res/values/strings.xml

android codes - android tutorial - android sdk
<?xml version="1.0" encoding="utf-8"?>
<resources>
    <string name="app_name">MyAndroidApp</string>
    <string name="lblPassword">Enter Your Password :</string>
    <string name="btn_submit">Submit</string>
</resources>
click below button to copy the code from android tutorial team
android programming - android software - android emulator

2. Password

  • Open “res/layout/main.xml” file, add a password component, EditText + inputType="textPassword".

File : res/layout/main.xml

android codes - android tutorial - android sdk
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="vertical" >

    <TextView
        android:id="@+id/lblPassword"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/lblPassword"
        android:textAppearance="?android:attr/textAppearanceLarge" />

    <EditText
        android:id="@+id/txtPassword"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:inputType="textPassword" >

        <requestFocus />
    </EditText>

    <Button
        android:id="@+id/btnSubmit"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/btn_submit" />

</LinearLayout>
click below button to copy the code from android tutorial team

 password android

3. Code Code

  • Inside activity “onCreate()” method, attach a click listener on button, to display the password value.

File : MyAndroidAppActivity.java

android codes - android tutorial - android sdk
package com.wikitechy.android;
import android.app.Activity;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;

public class MyAndroidAppActivity extends Activity {

  private EditText password;
  private Button btnSubmit;

  @Override
  public void onCreate(Bundle savedInstanceState) {
	super.onCreate(savedInstanceState);
	setContentView(R.layout.main);

	addListenerOnButton();
  }

  public void addListenerOnButton() {

	password = (EditText) findViewById(R.id.txtPassword);
	btnSubmit = (Button) findViewById(R.id.btnSubmit);

	btnSubmit.setOnClickListener(new OnClickListener() {

		@Override
		public void onClick(View v) {

		  Toast.makeText(MyAndroidAppActivity.this, password.getText(),
			Toast.LENGTH_SHORT).show();

		}

	});

  }
}
click below button to copy the code from android tutorial team

 android password field

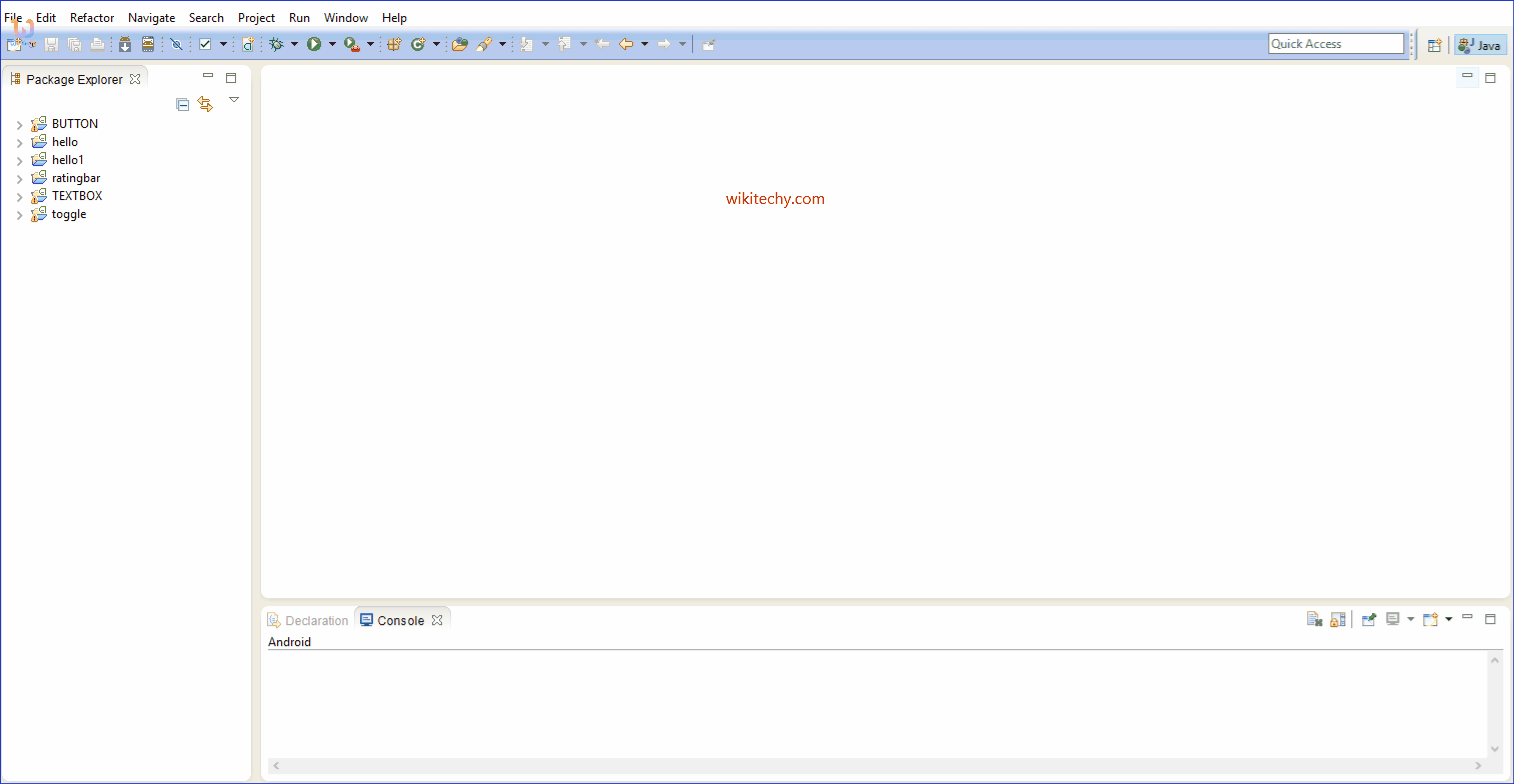

4. Demo - android emulator - android tutorial

Run the application.

  1. Result, password field is displayed.
 android password manager
  1. Type password “wikitechy” and click on the submit button.
 android password
