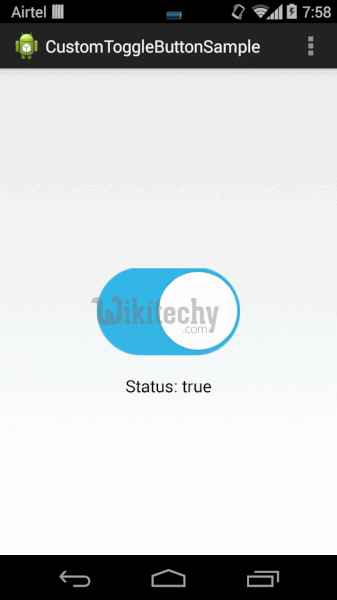

 output potdse
  • Android Toggle Button is used to display checked/unchecked (On/Off) state on the button.
  • It can be used to On/Off Sound, Wifi, Bluetooth etc.
  • Android 4.0, there is another type of toggle button called switch that provides slider control.
  • Android ToggleButton and Switch both are the subclasses of CompoundButton class.
  • A toggle button allows the user to change a setting between two states.
  • You can add a basic toggle button to your layout with the ToggleButton object. Android 4.0 (API level 14) introduces another kind of toggle button called a switch that provides a slider control, which you can add with a Switch object. SwitchCompat is a version of the Switch widget which runs on devices back to API 7.
  • If you need to change a button's state yourself, you can use the CompoundButton.setChecked() or CompoundButton.toggle() methods.
 android switch toggle output
android programming - android software - android emulator

Android ToggleButton class

  • ToggleButton class provides the facility of creating the toggle button.

XML Attributes of ToggleButton class

  • The 3 XML attributes of ToggleButton class.
XML Attribute Description
android:disabledAlpha The alpha to apply to the indicator when disabled.
android:textOff The text for the button when it is not checked.
android:textOn The text for the button when it is checked.

Methods of ToggleButton class

  • Some of the widely used methods of ToggleButton class is given below,
Method Description
CharSequence getTextOff() Returns the text when button is not in the checked state.
CharSequence getTextOn() Returns the text for when button is in the checked state.
void setChecked(boolean checked) Changes the checked state of this button.
android programming - android software - android emulator

1. Custom String

  • Open “res/values/strings.xml” file, add some custom string for toggle buttons.
  • File : res/values/strings.xml
android codes - android tutorial - android sdk
<?xml version="1.0" encoding="utf-8"?>
<resources>
    <string name="app_name">MyAndroidApp</string>
    <string name="toggle_turn_on">Turn On</string>
    <string name="toggle_turn_off">Turn Off</string>
    <string name="btn_display">Display</string>
</resources>
click below button to copy the code from android tutorial team

2. ToggleButton

  • Open “res/layout/main.xml” file, add two “ToggleButton” and a normal button, inside the LinearLayout.
  • File : res/layout/main.xml
android codes - android tutorial - android sdk
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="vertical" >

    <ToggleButton
        android:id="@+id/toggleButton1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="ToggleButton" />

    <ToggleButton
        android:id="@+id/toggleButton2"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textOn="@string/toggle_turn_on"
        android:textOff="@string/toggle_turn_off"
        android:checked="true" />

    <Button
        android:id="@+id/btnDisplay"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/btn_display" />

</LinearLayout>
click below button to copy the code from android tutorial team

3. Code Code

  • Inside activity “onCreate()” method, attach a click listeners on a normal button, to display the current state of the toggle button.
  • File : MyAndroidAppActivity.java
android codes - android tutorial - android sdk
package com.wikitechy.android;

import android.app.Activity;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.Toast;
import android.widget.ToggleButton;

public class MyAndroidAppActivity extends Activity {

  private ToggleButton toggleButton1, toggleButton2;
  private Button btnDisplay;

  @Override
  public void onCreate(Bundle savedInstanceState) {
	super.onCreate(savedInstanceState);
	setContentView(R.layout.main);

	addListenerOnButton();

  }

  public void addListenerOnButton() {

	toggleButton1 = (ToggleButton) findViewById(R.id.toggleButton1);
	toggleButton2 = (ToggleButton) findViewById(R.id.toggleButton2);
	btnDisplay = (Button) findViewById(R.id.btnDisplay);

	btnDisplay.setOnClickListener(new OnClickListener() {

		@Override
		public void onClick(View v) {

		   StringBuffer result = new StringBuffer();
		   result.append("toggleButton1 : ").append(toggleButton1.getText());
		   result.append("\ntoggleButton2 : ").append(toggleButton2.getText());

		   Toast.makeText(MyAndroidAppActivity.this, result.toString(),
			Toast.LENGTH_SHORT).show();

		}

	});

  }
}
click below button to copy the code from android tutorial team
android programming - android software - android emulator

4. Demo - android emulator - android tutorial

  • Run the application.

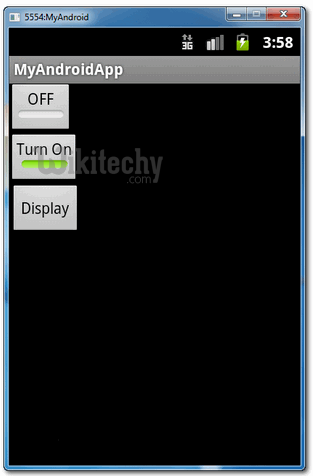

  • By default, toggleButton2 is using the customized string, and its checked.
 execution1

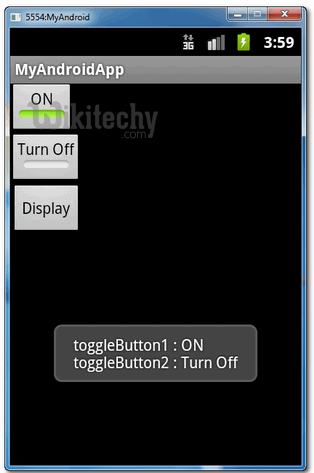

  • Checked toggleButton1 and
  • unchecked toggleButton2, and click on the display button,
  • the current state of both toggle buttons will be displayed.
 execute2
